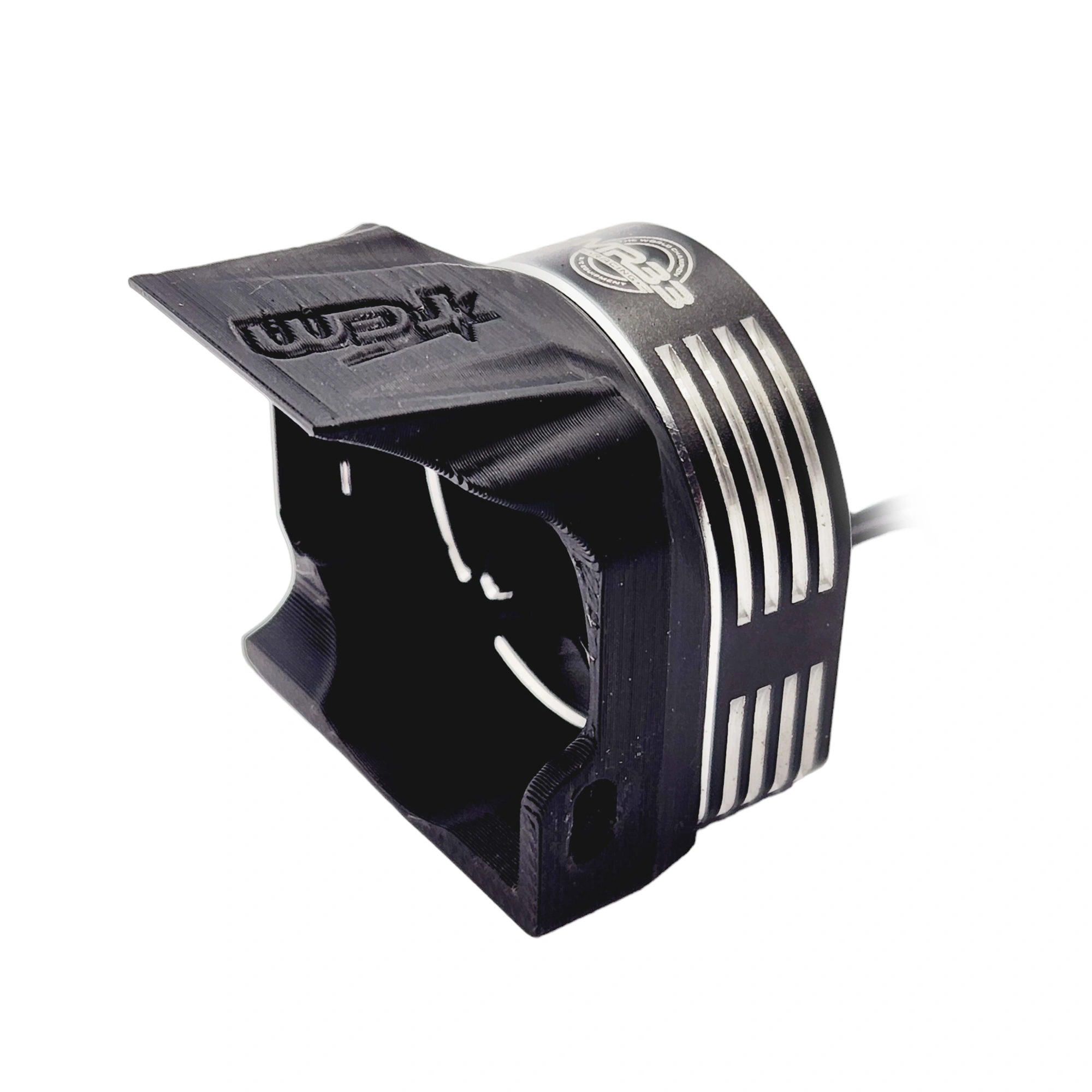

Introducing our brand new Direct Mount Fan Shroud Pro for 30mm Moon/Round Top Fans!

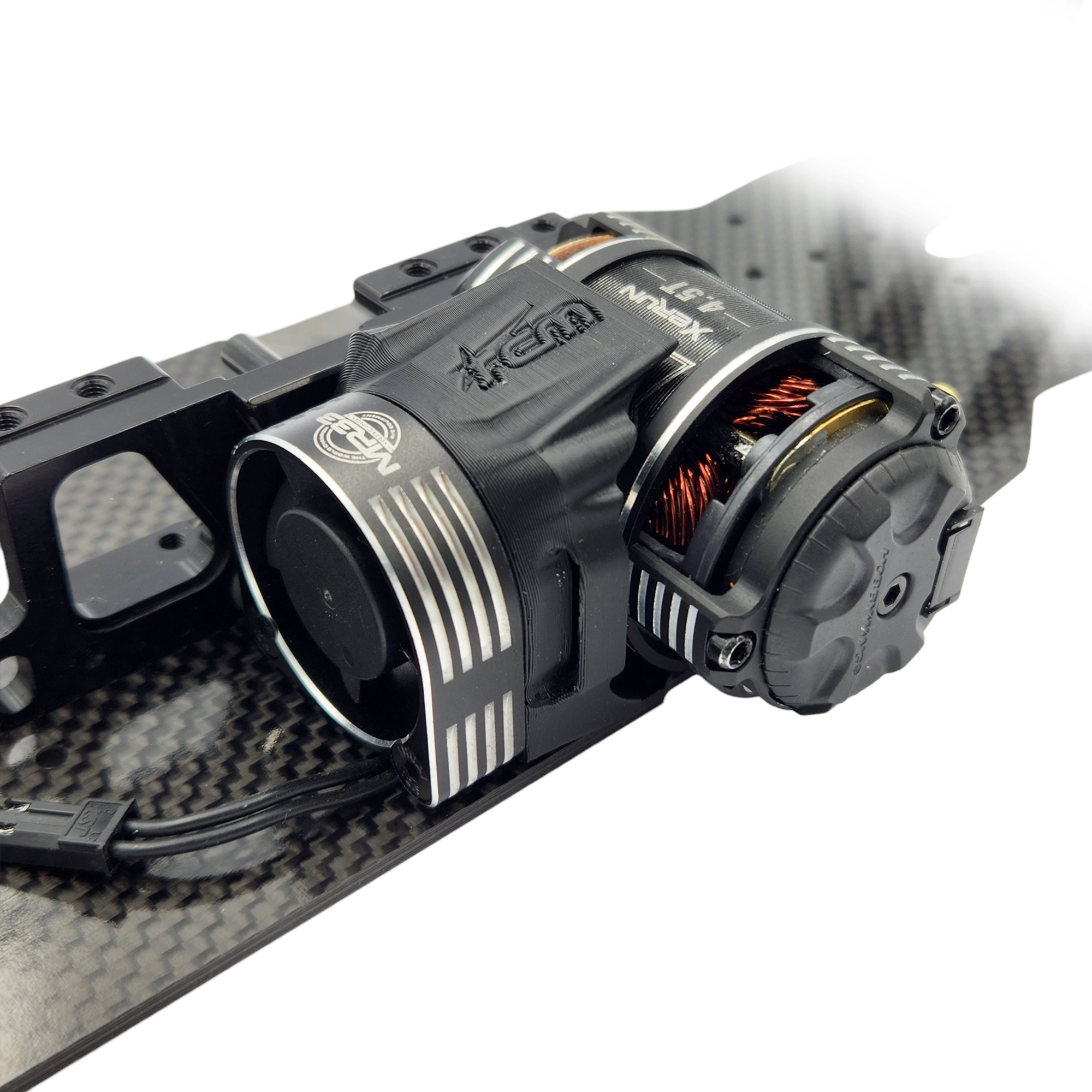

With our fan shroud, there is no need to purchase any after market fan mounts. The fan shroud screws directly to the motor-mount and floats the fan and shroud assembly off the chassis for uninterrupted flex. The assembly is also adjustable in/out and up/down in by adding or removing shims from the screw, and sliding in the slot. This can be handy for balancing your car or adjusting height to clear weight underneath!
Of course, this fan shroud can also be taped down directly to the chassis with double sided tape (not supplied)!
The shroud itself has been optimised to direct the air towards the motor, without smothering the fan and reducing the RPM. Many fan shrouds on the market today, whilst directing the air, smother the fan and actually cause less air movement. We've used a scale and fan mounting system to determine the impacts shrouds have on the movement of air towards a motor and have ensured there is absolutely no loss of air volume with our shroud!

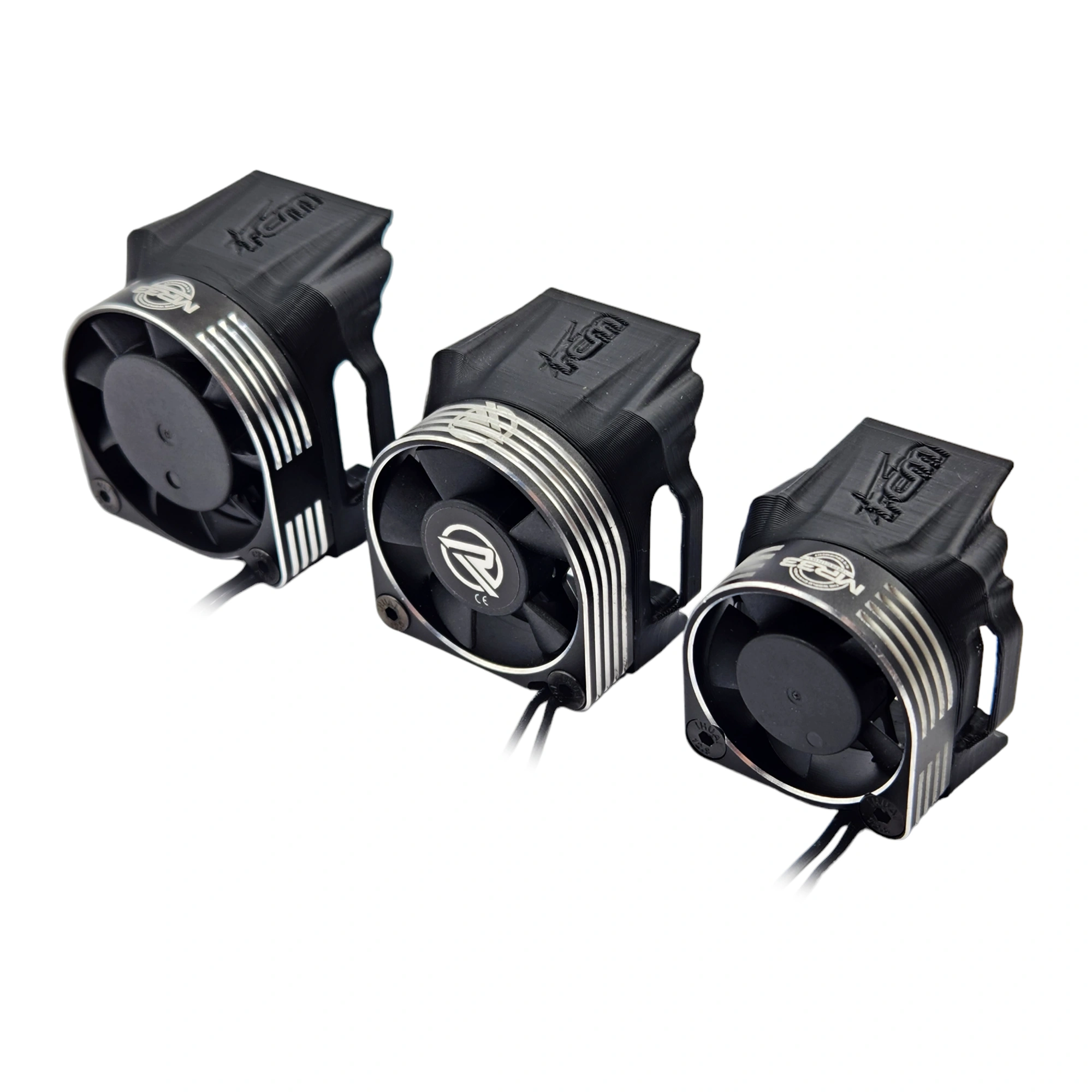

It's available for square and moon fans, comes in 30mm, 35mm and 40mm sizes for moon fans, which are available from Ruddog and MR33!

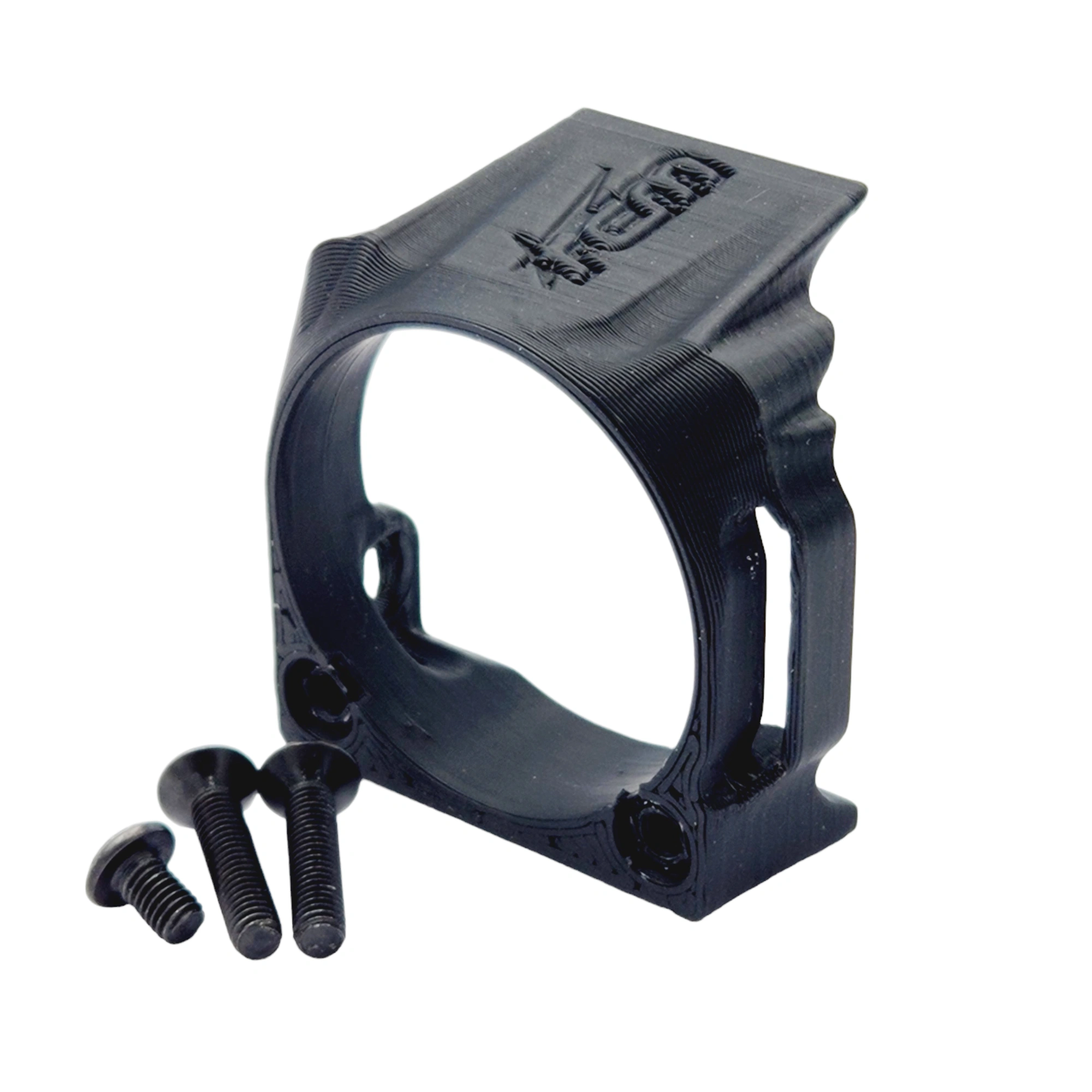

The set includes a lightweight, super high resolution 3D Printed Shroud, with all required mounting hardware.
Important Note! This Fan Shroud on its own will attach to Awesomatix A800R/MMX and Yokomo BD11/12/MS1.0 Motormount without any additional hardware.
For Drivers wanting to Directly Mount this to XRAY X4'23/'24 or Mugen MTC2R, you must purchase the additional mounting bracket that positions the shroud perfectly. This is available here for MUGEN and XRAY
If you simply want to attach it via tape, it will fit any touring car on the market!
Features:
- Mounts directly to the motor-mount with no fan mount or tape required
- Can also be double sided taped to the chassis
- Increases volume of air flow over the motor, reducing motor temperatures
- Floats Shroud and Fan Assembly off the chassis for uninterrupted flex with horizontal and vertical position adjustment (when direct mounted)
- Works with RC MAKER Floating Electronics Plates
- Includes all required mounting screws
- 3D Printed in Australia from the highest quality PLA+ Filament
Fan NOT Included
