Product Detail

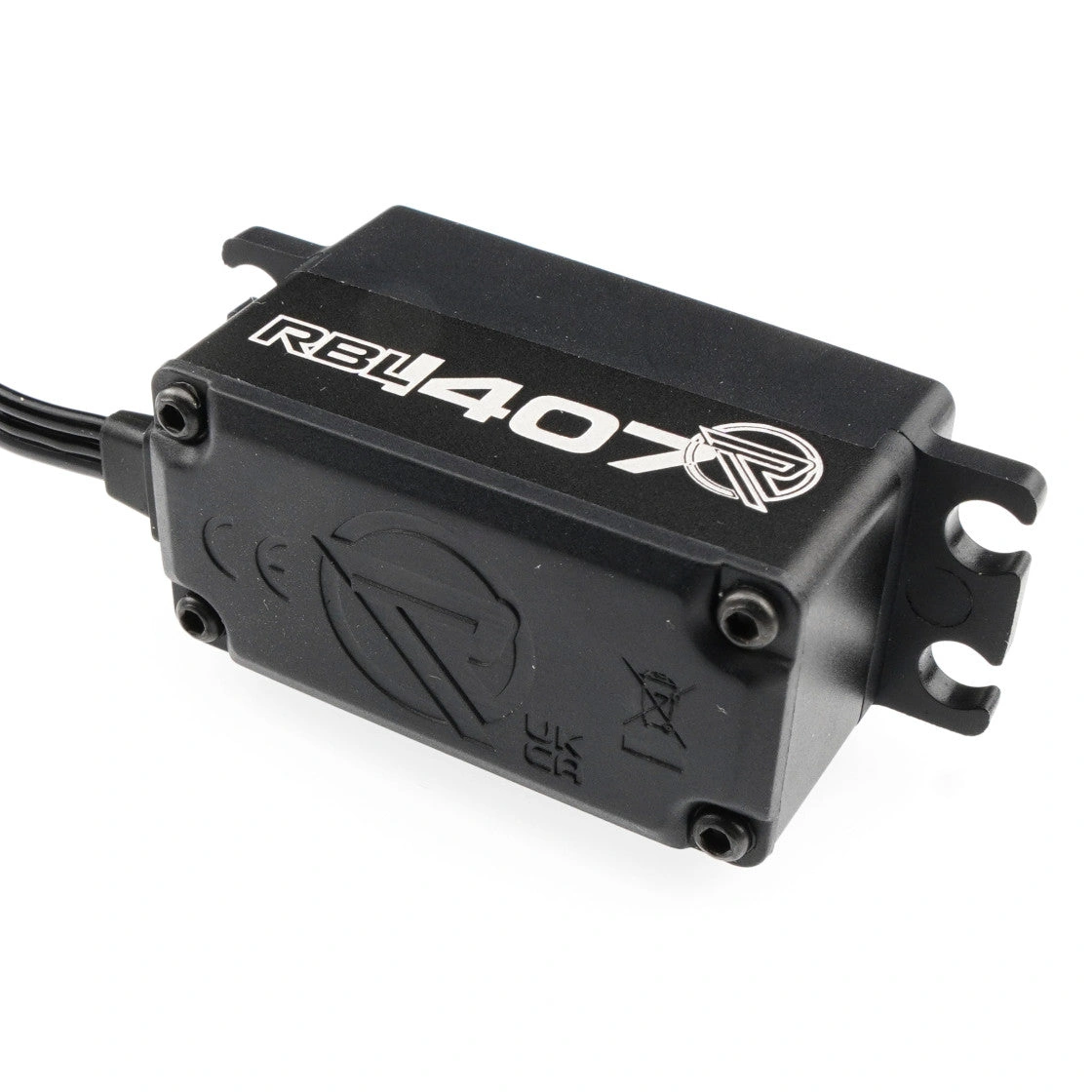

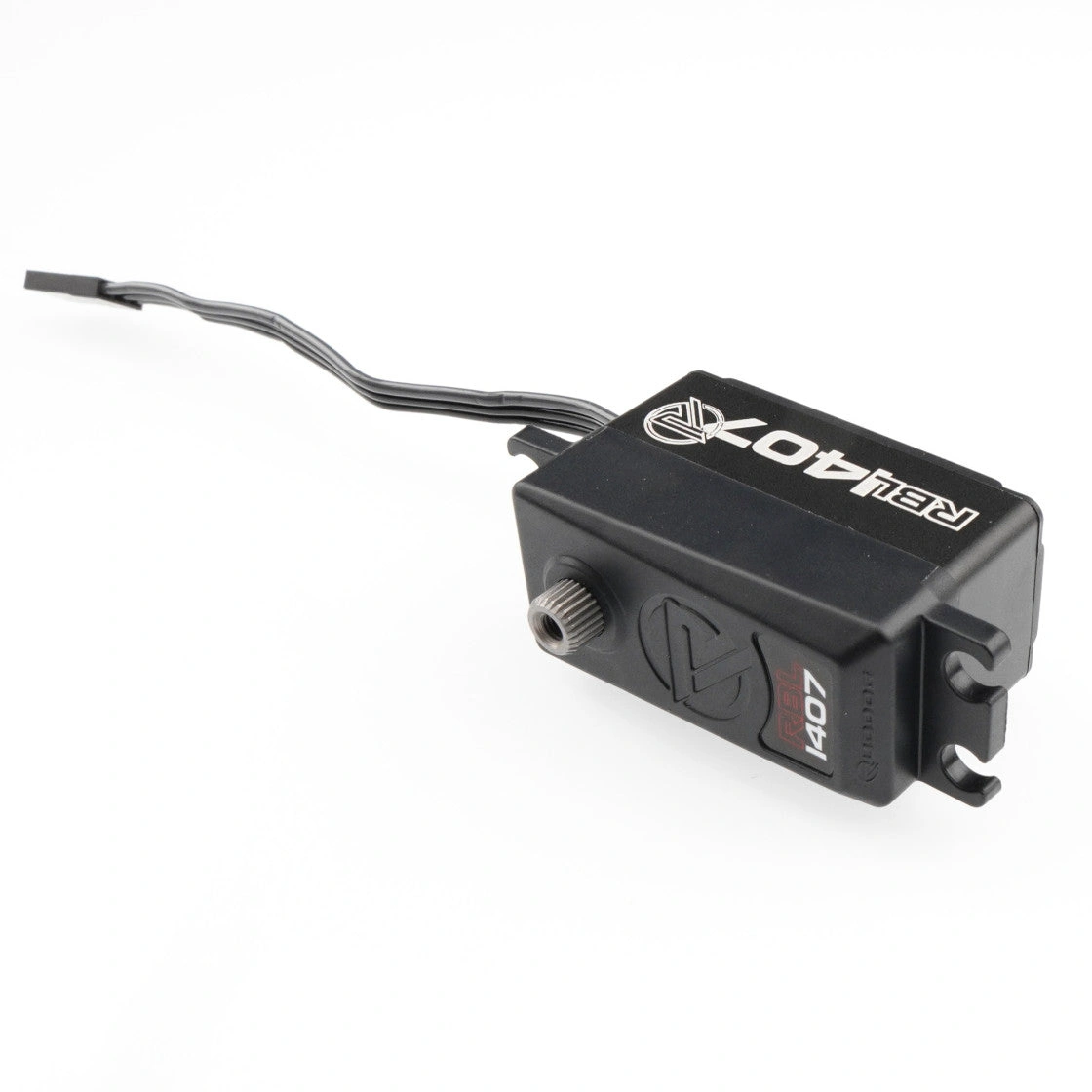

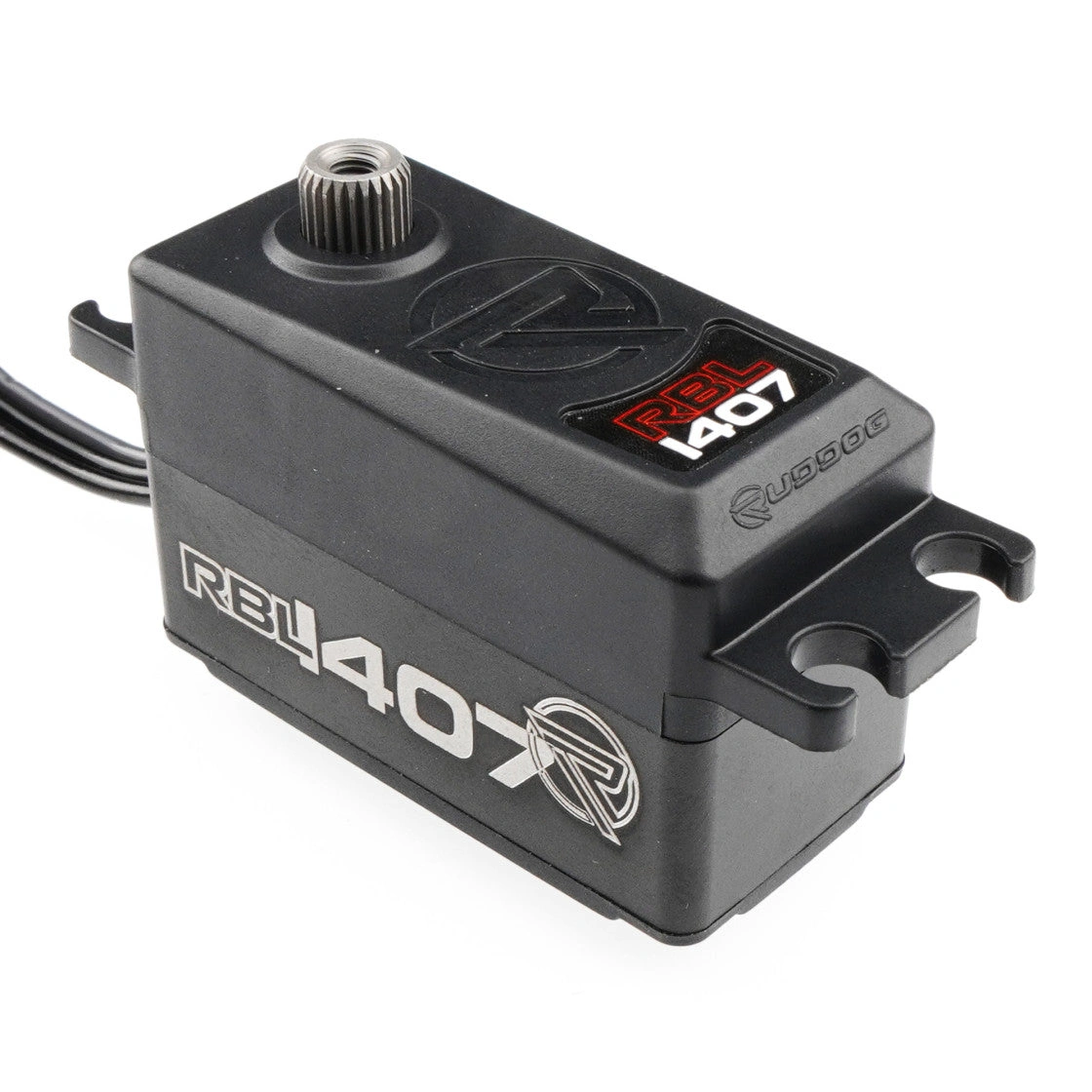

Experience the power and precision of the RUDDOG RBL1407 HV Low-Profile Brushless Servo for your RC touring car. Tailored for the 1/10 touring car class, this servo combines performance with reduced mass thanks to its lightweight plastic housing. The central part of the housing is made of aluminum for improved cooling, and features a distinctive RUDDOG laser engraving. The servo comes with four mounting screws and a 100mm cable Extension.

Features:

• Tailored for the 1/10 touring car class
• Lightweight plastic housing with central aluminum part
• Laser-engraved RUDDOG logo on the aluminum section
• Spline: 25T
• Dimensions: 40.8x20.3x26.9mm
• Weight: 48.2g
• Operating speeds: 0.080s @6.0V, 0.072s @7.4V, 0.066s @8.4V
• Operating forces: 12.8kg @6.0V, 14.0kg @7.4V, 14.8kg @8.4V
• Voltage range: 4.8 - 8.4V
• Motor type: Brushless
• Gear type: Metal
• Cable length: 100mm

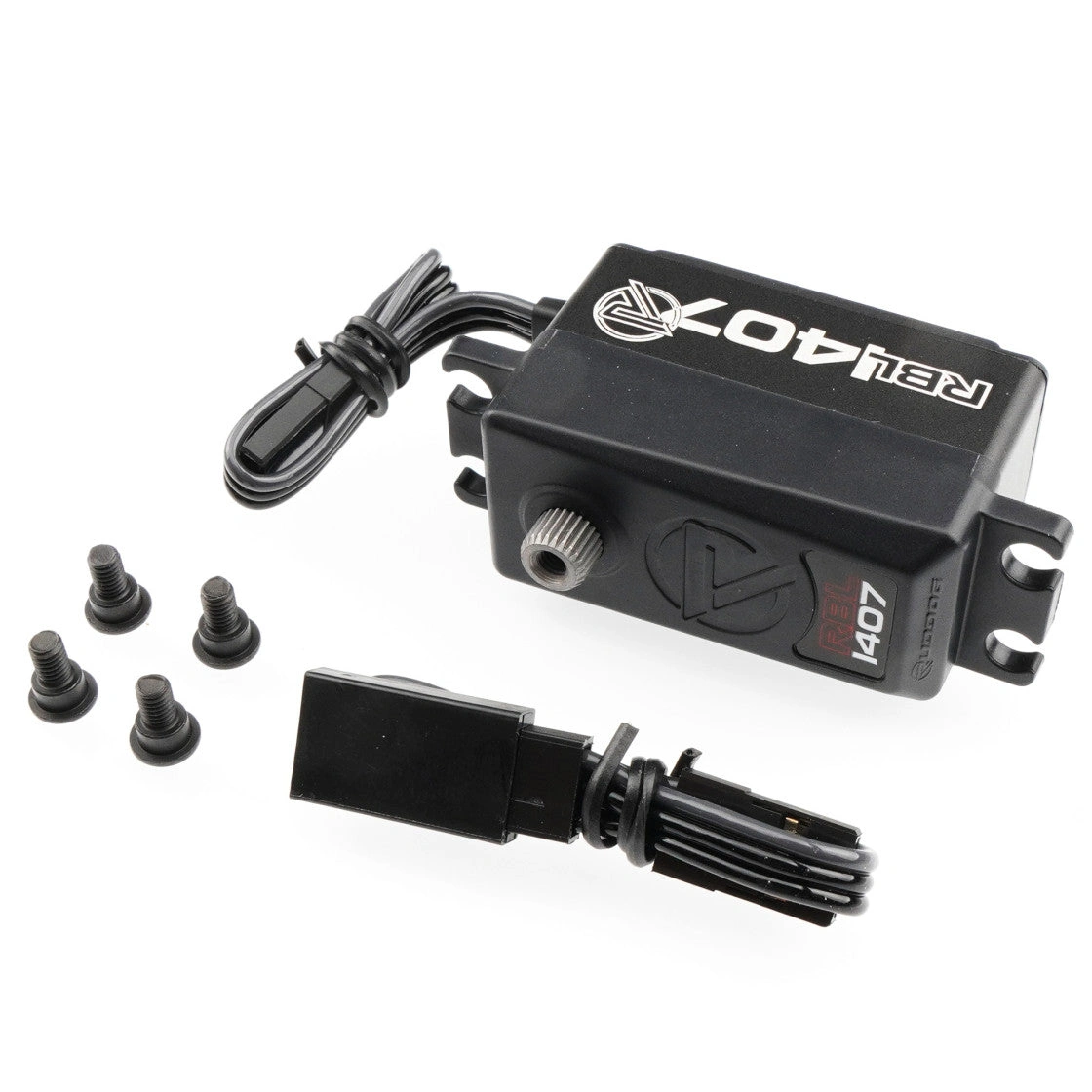

• Package includes: Servo, 4 mounting screws, 100mm cable Extension.
